PLEASE NOTE: WIRING HARNESS KIT SOLD SEPARATELY.

 NOT FOR HIGHWAY USE, DOES NOT FIT FIESTA R2**

What's in the box?

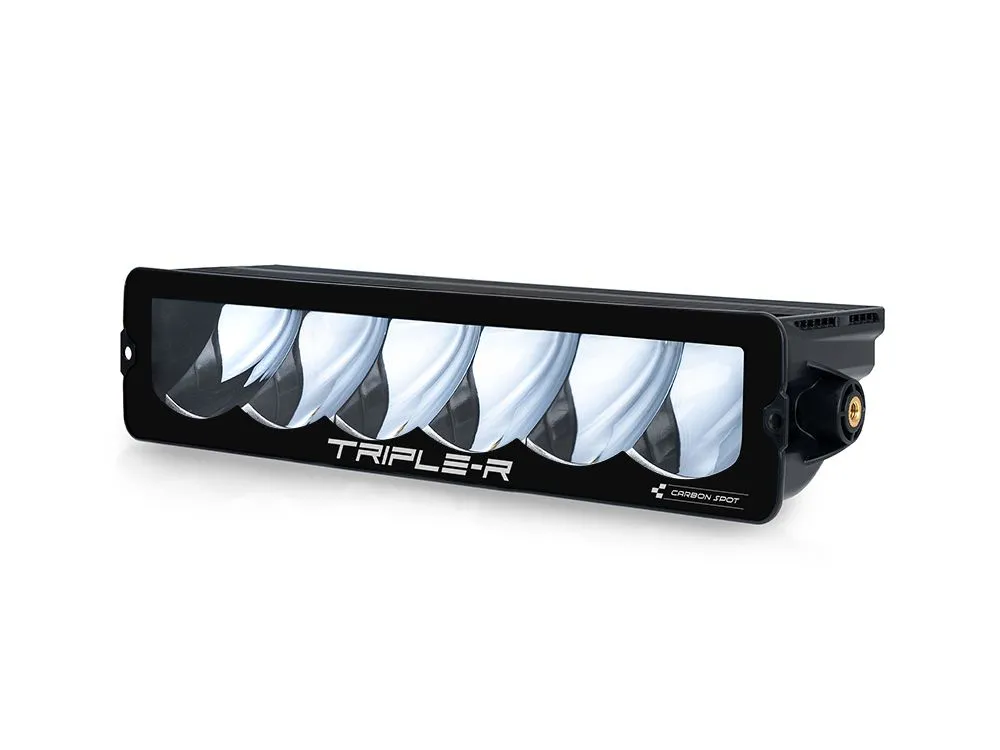

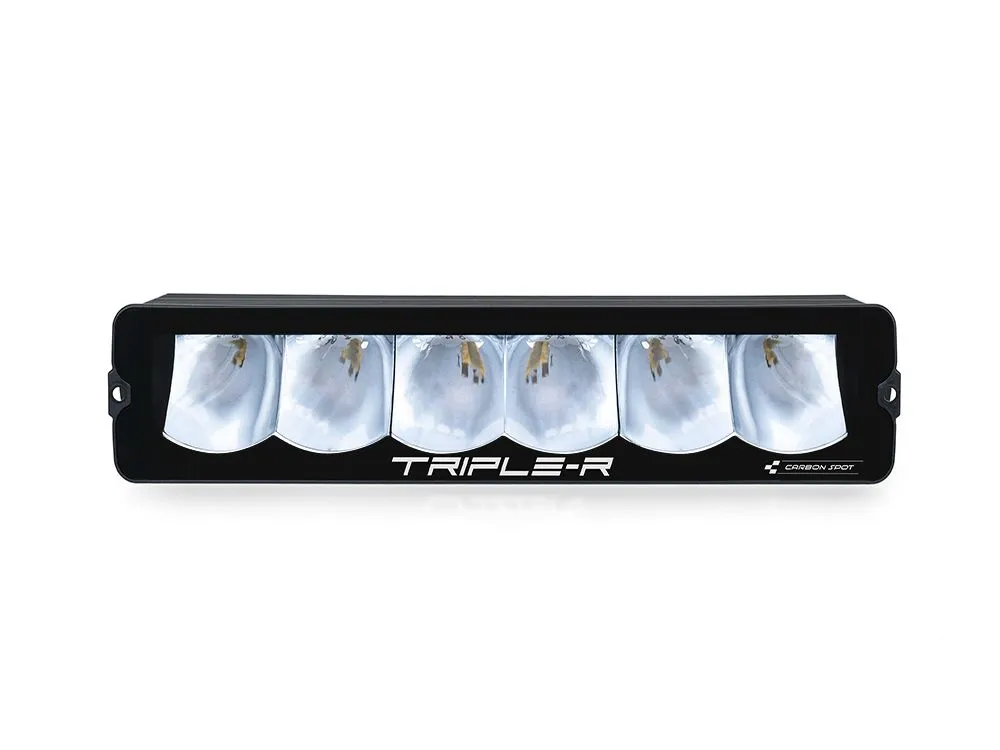

• x1 Carbon-6 SPOT LED Light

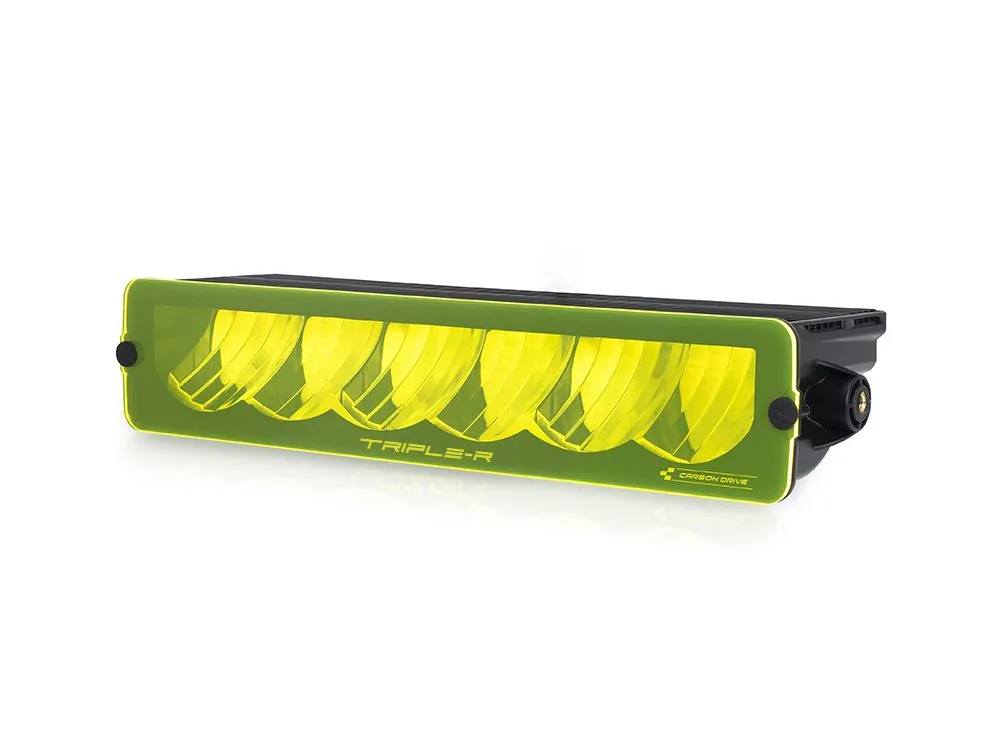

• x1 Amber Lens Cover

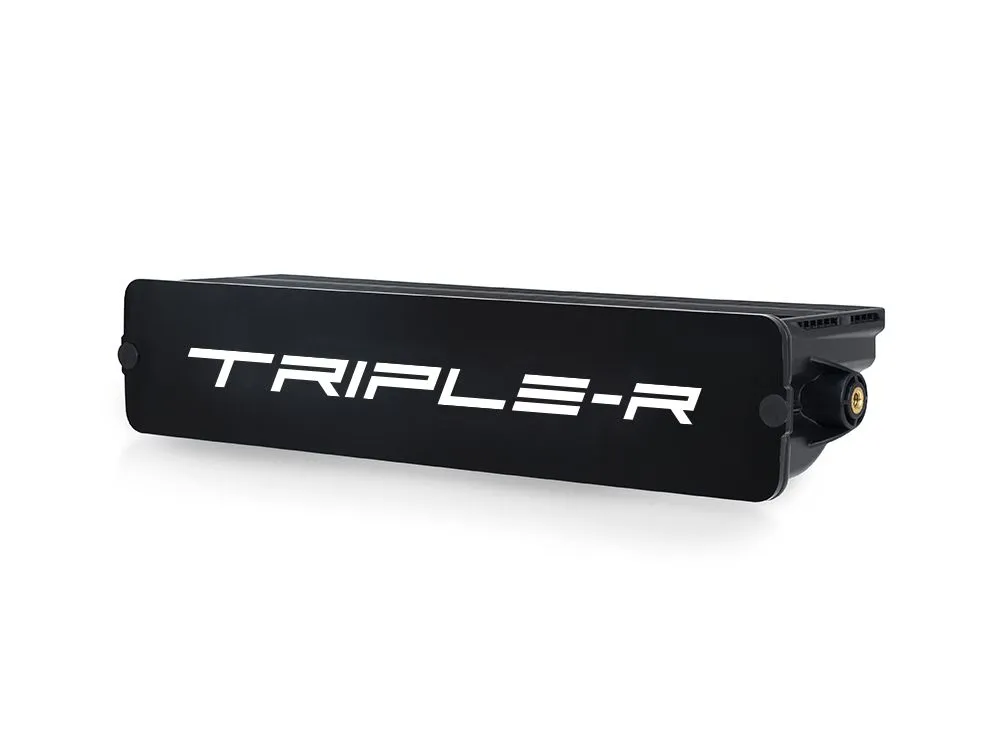

• x1 Black Lens Cover
• x1 Installation Instructions

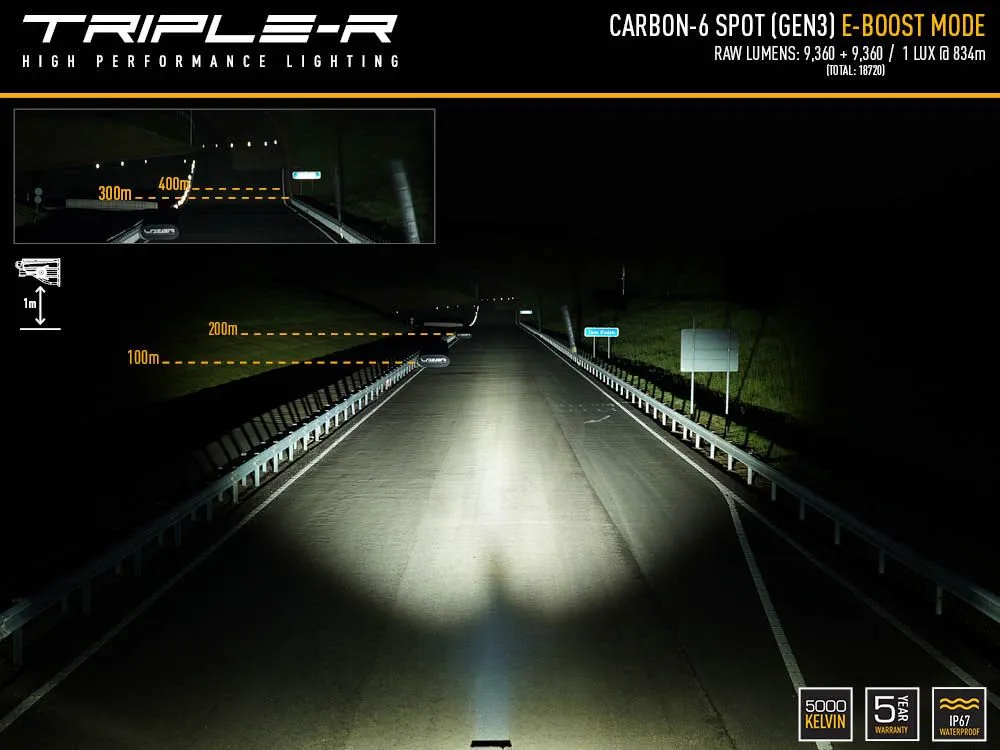

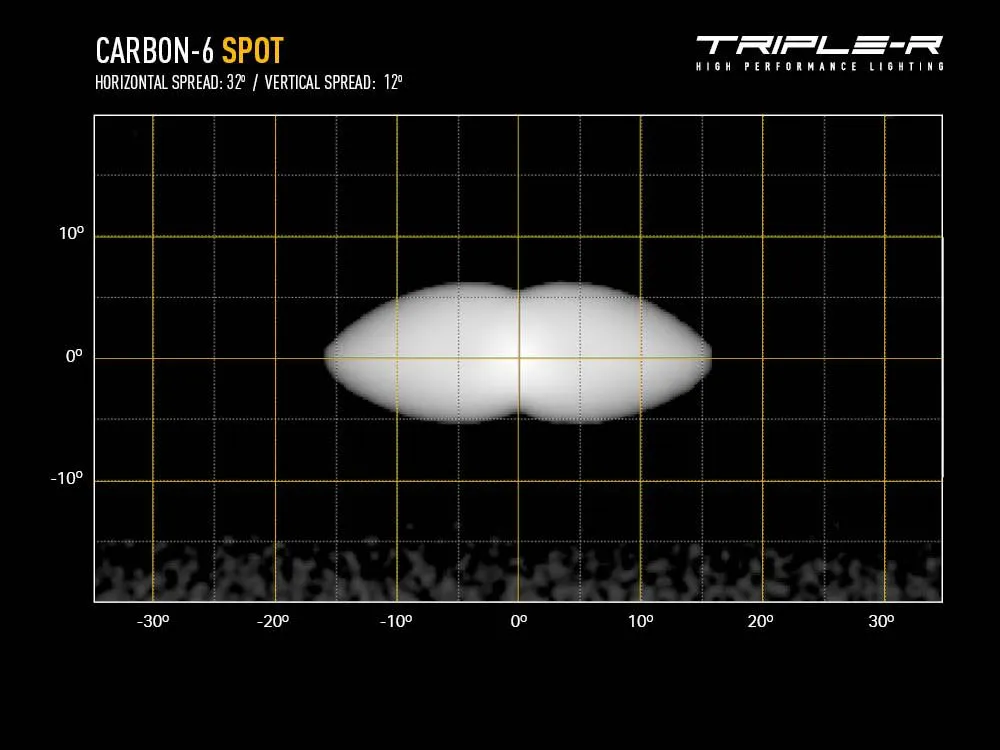

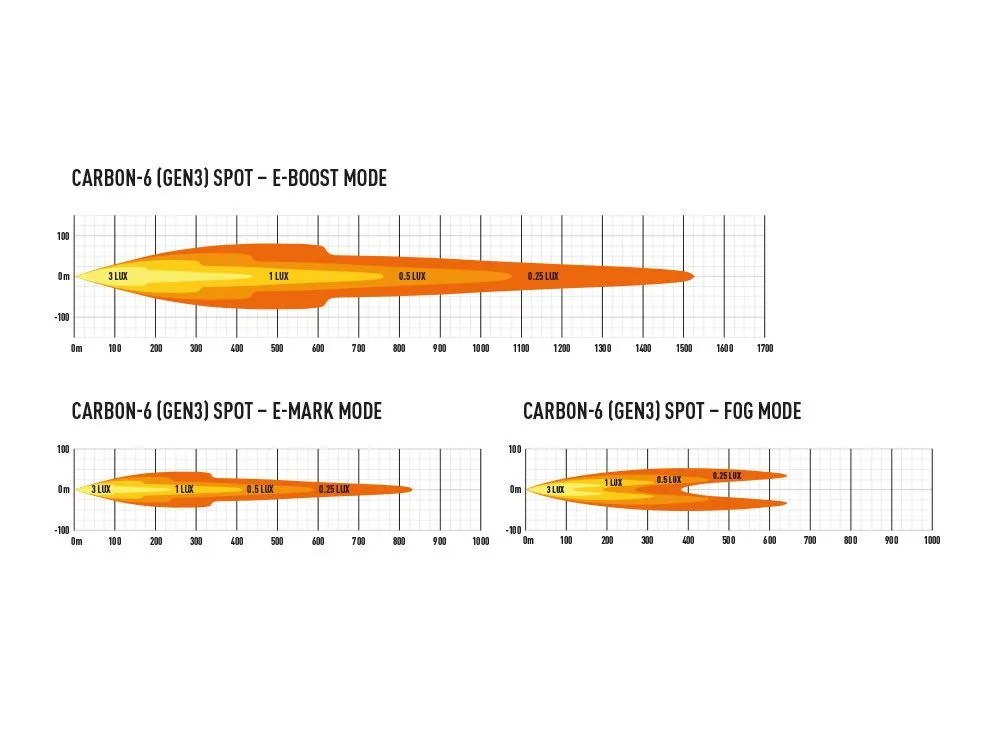

The 3^rd generation of Carbon-6 LED driving lights represent years of continued development and testing at the very highest levels of professional rally and track motorsport. The re-design and re-engineering of the products delivers more light, less weight, and greater functionality, compared to previous iterations. Available as ‘SPOT’ or ‘DRIVE’ beam pattern, each light can operate in four modes:

• FULL BEAM (100% output, ‘high beam’ pattern
• FOG BEAM (100% output ‘fog beam’ pattern)
• E-MARK MODE (25% output, ‘high beam’ pattern)
• RAIN MODE (25% output, ‘fog beam’ pattern)

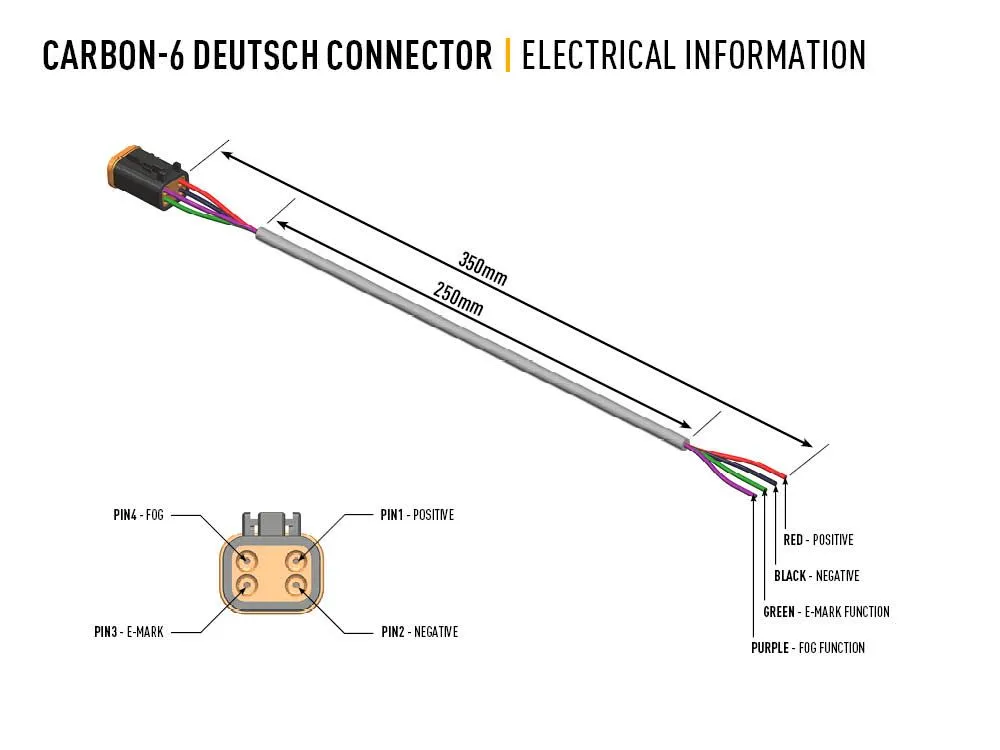

Additional lighting modes are also possible for race teams who want maximum flexibility, by application of a PWM signal from the vehicle.

Advances in electronic design and component technologies, has allowed us to increase the light output through placing additional LEDs on each lamp’s circuit board. Product-specific ultra-reflective vacuum-metallized optics harness the maximum light output for the road and track ahead. Used in combination, the SPOT and DRIVE lamps deliver the perfect balance of distance and spread illumination in perfect uniformity.

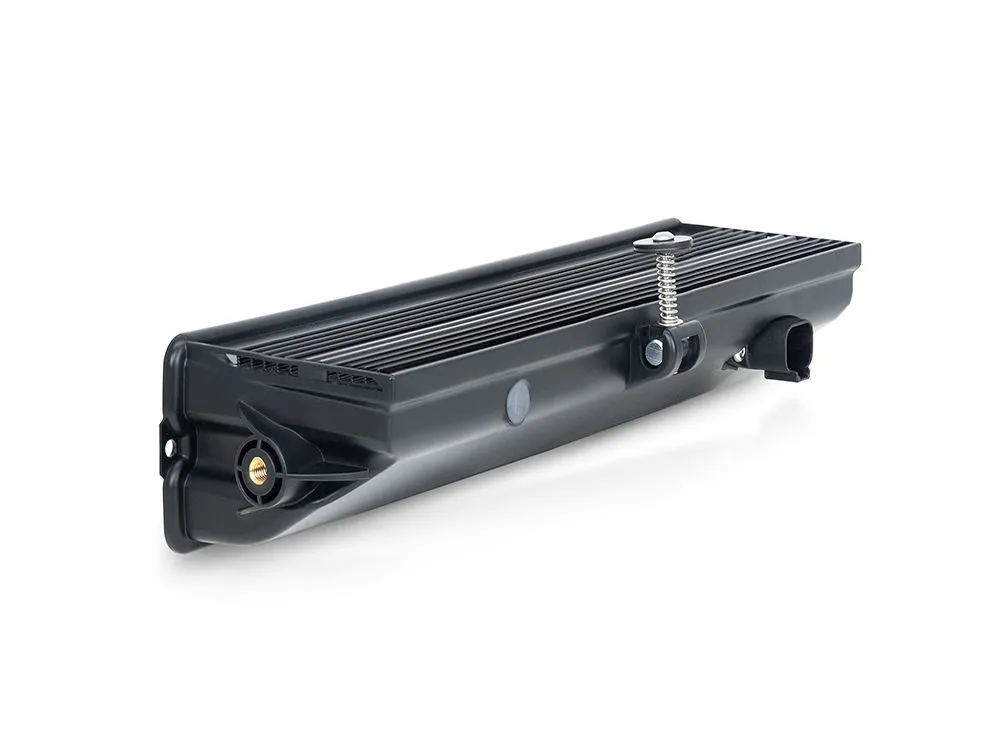

The lamp housing is constructed from high-strength and heat-resistant PC-ABS material. Thermal control of the lamp is managed through a CAE-optimized anodized aluminum element, meticulously engineered to maintain full and optimal lighting performance of the LEDs. The result are products weighing just 400g each. Dynamic drive modulation within the lamps, prevents damage to the electronic components in more extreme environmental and thermal conditions.

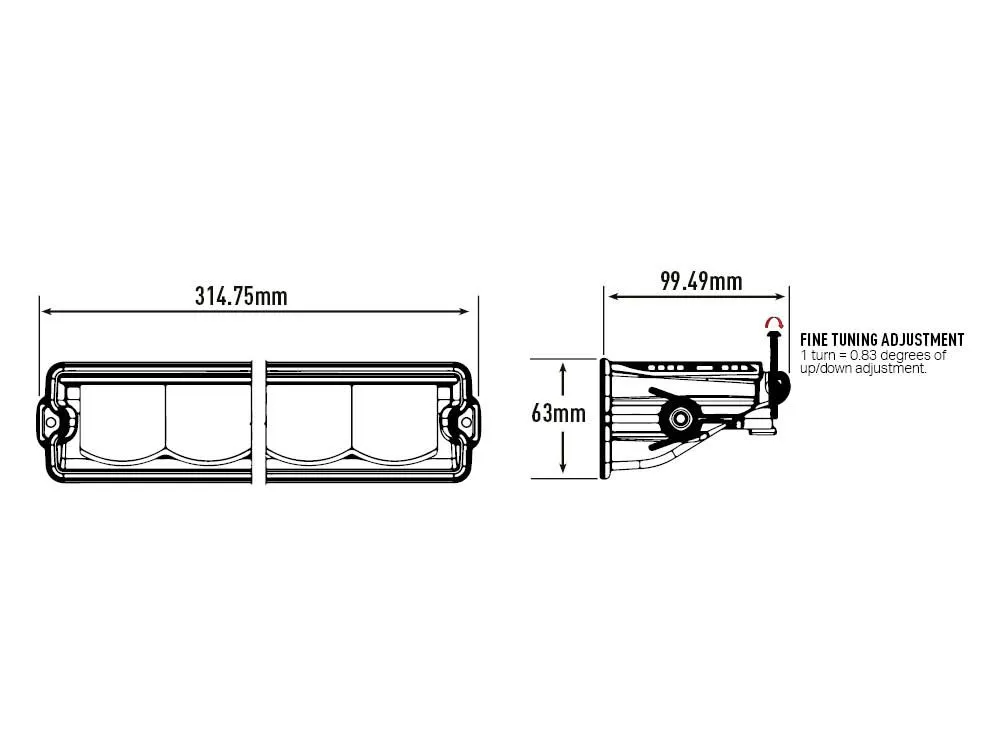

The Carbon-6 lamps have been designed alongside a range of carbon-fiber rally pods, compatible across a wide range of vehicle makes and models, as well as universal-fit bonnet-mounting solutions for 2 or 3 lamp setups. Pod adjustment and fine-tuning elements, alongside compatible lens cover options (supplied with each light), ensures an overall superior motorsport lighting solution.

**Carbon-6 Gen 3 lights are not compatible with the Fiesta R2, unless purchased through M-Sport directly. There are compatibility issues with different iterations of their PDU, and so to ensure you have a product match, please coordinate your purchase through their after-sales support team, at Dovenby Hall, UK. M-Sport have also developed a wiring harness which ensures an easy integration to their vehicle, which isn’t available from Triple-R Lights directly.
